Technical data
| Type |
Frequency [1/min] |
Centrifugal force [N] |
Air consumption [l/min] |
Weight [kg] |
| VT 7 |
41.000 |
1.440 | 85 | 0,34 |
| VT 9 | 32.000 | 1.650 | 105 | 0,36 |
| VT 13 | 26.000 | 3.630 | 180 | 0,78 |
| VT 16 | 18.500 | 4.180 | 225 | 0,81 |
| VT 17 | 16.500 | 4.980 | 235 | 0,95 |
| VT 24 | 12.400 | 6.220 | 325 | 2,10 |
| VT 31 | 11.000 | 8.610 | 350 | 2,16 |
Data measured at 6 bar.

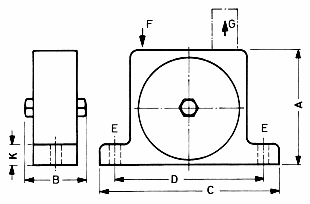

Mounting dimensions
Technical data changes reserved.
|
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Type | A | B | C | D | E | F | G | K |
| VT 7 | 55 | 36 | 90 | 68-73 | 7 | 1/8" | 1/8" | 12 |
| VT 9 | 55 | 36 | 90 | 68-73 | 7 | 1/8" | 1/8" | 12 |
| VT 13 | 80 | 49 | 128 | 104 | 9 | 1/4" | 1/4" | 16 |
| VT 16 | 80 | 49 | 128 | 104 | 9 | 1/4" | 1/4" | 16 |
| VT 17 | 80 | 49 | 128 | 104 | 9 | 1/4" | 1/4" | 16 |
| VT 24 | 110 | 63 | 170 | 130-140 | 11 | 3/8" | 3/8" | 21 |
| VT 31 | 110 | 63 | 170 | 130-140 | 11 | 3/8" | 3/8" | 21 |
